| Style Name | 3280-10F |
| Color | black |
| Item Weight | 0.1 Kilograms |
| Item Dimensions | 17.5 x 5.7 x 1.6 cm |
| Specification Met | CE, IEC 61010-1:2000-1, IP 40 |
| Brand Name | Hioki |
| Model | 3280-10F |
| Manufacturer | 日置電機(Hioki Electric) |
| Part Number | 3280-10F |
| Included Components | No |
| Country Of Origin | Japan |
| Unit Count | 1 Count |
| Brand | Hioki |
| Style | 3280-10F |
| Item dimensions L x W x H | 17.5 x 5.7 x 1.6 cm |

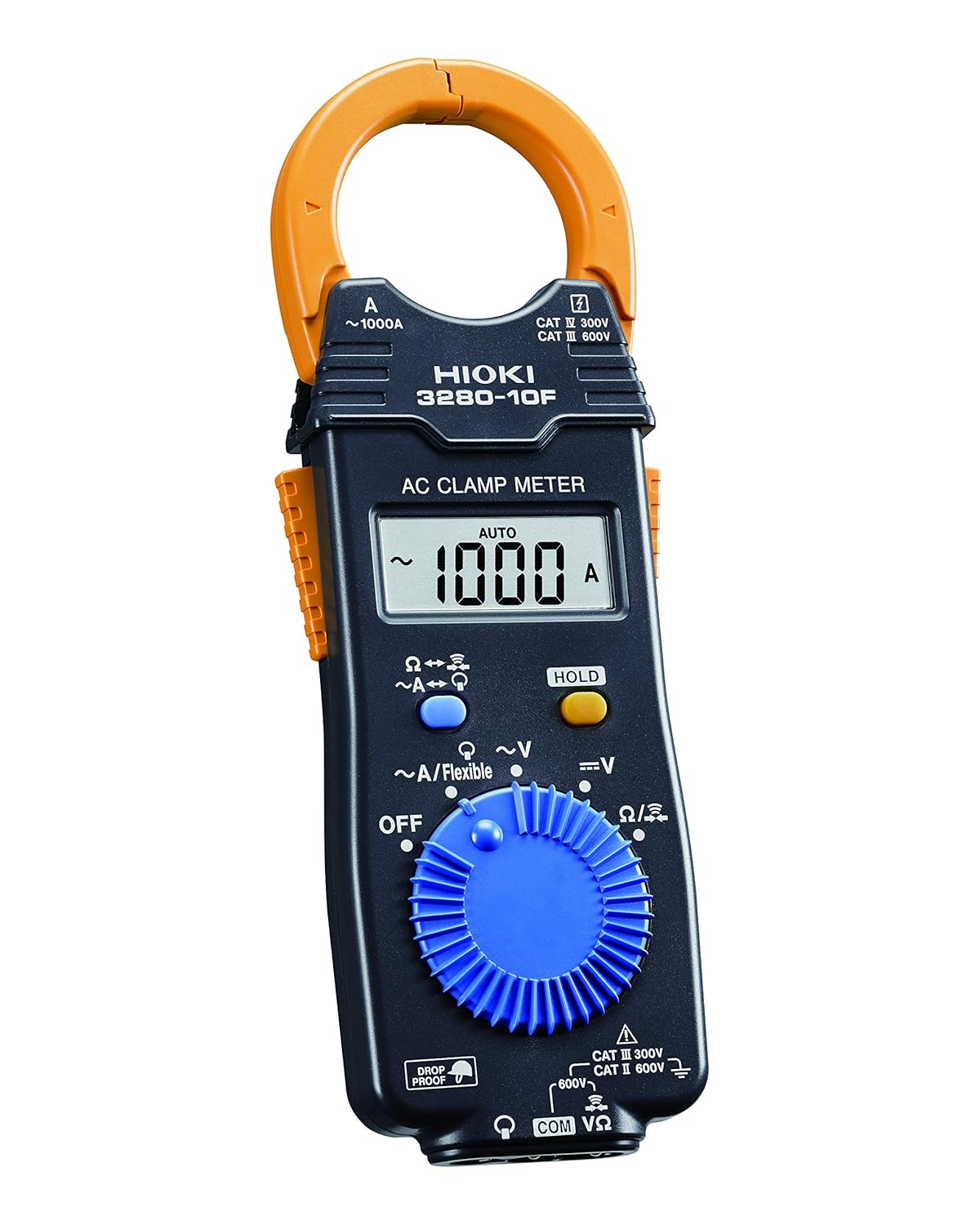

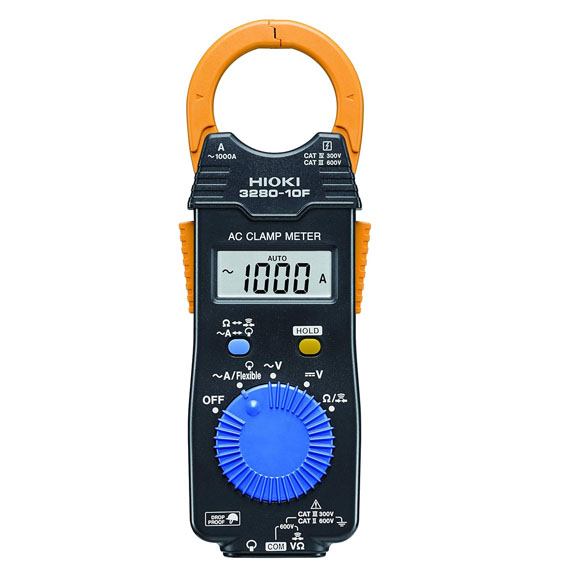

Thin and lightweight with a compact shape that is easy to carry.
Can clamp cable with a finished outer diameter of 1.3 inches (33 mm) or less *CT6280 (sold separately); φ5.1 inches (130 mm) or less when in use.
Supports AC current measurement, equipped with AC 1000 A range.
Compatible with measurements in high temperature environments and below freezing temperatures. Usable temperature range: -25°C to 65°C (should not be condensed).
Compatible with CAT IV 300V/CAT III 600V (when measuring current), CAT III 300V (when measuring voltage), as specified by safety standards.
Sturdy design withstands drops from 3.3 ft (1 m) on concrete (drop proof)
[Measurements]
AC current ○, DC current × AC + DC current × AC voltage × DC voltage × AC + DC voltage ×
AC power x , DC power x , Resistance x , Temperature x , Capacitance x , Frequency x x , Conduction check x , Diode check x .
– AC Current (Range) 42.00 A/420.0 A/1000 A, (Accuracy Range) 4.00 A to 1000 A, (Representative Accuracy) ±1.5% rdg ±5 dgt
– AC current CT6280 (sold separately) in use (range) 420.0 A/4200 A, (accuracy range) 40.0 A to 4199 A, (representative accuracy) ±3.0% rdg ±5 dgt
– AC Voltage (Range) 4.200 V/42.00 V/420.0 V/600 V, (Accuracy Range) 0.400 V ~ 600 V, (Representative Accuracy) ±1.8% rdg ±7 dgt
– DC voltage (range) 420.0 mV/4.200 V/42.00 V/420.0 V/600 V, (accuracy range) 40.0 mV ~ 600 V, (representative accuracy) ±1.0% rdg ±3 dgt
– Resistance (range) 420.0 Ω/4.200 kΩ/42.00 kΩ/420.0 kΩ/4.200 MΩ/42.00 MΩ, (accuracy definition) 40.0 Ω-41.99 MΩ, (representative accuracy) ±2.0% rd. g ± 4 d gt
[Equipped Features]
AC DC automatic detection (current/voltage), maximum value/min value/average value display × wave height (PEAK value) × effective value/input current display ×
Backlight x , Auto Power Saving â—‹, Auto Range Switch, Display Value Hold (Manual) â—‹
Power supply:
1 x Lithium Coin Battery (CR2032)
Continuous Usage Time:
About 120 hours
External Dimensions / Weight:
Approx. 2.2 x 6.9 x 0.6 inches (57 x 175 x 16 mm), 3.5 oz (100

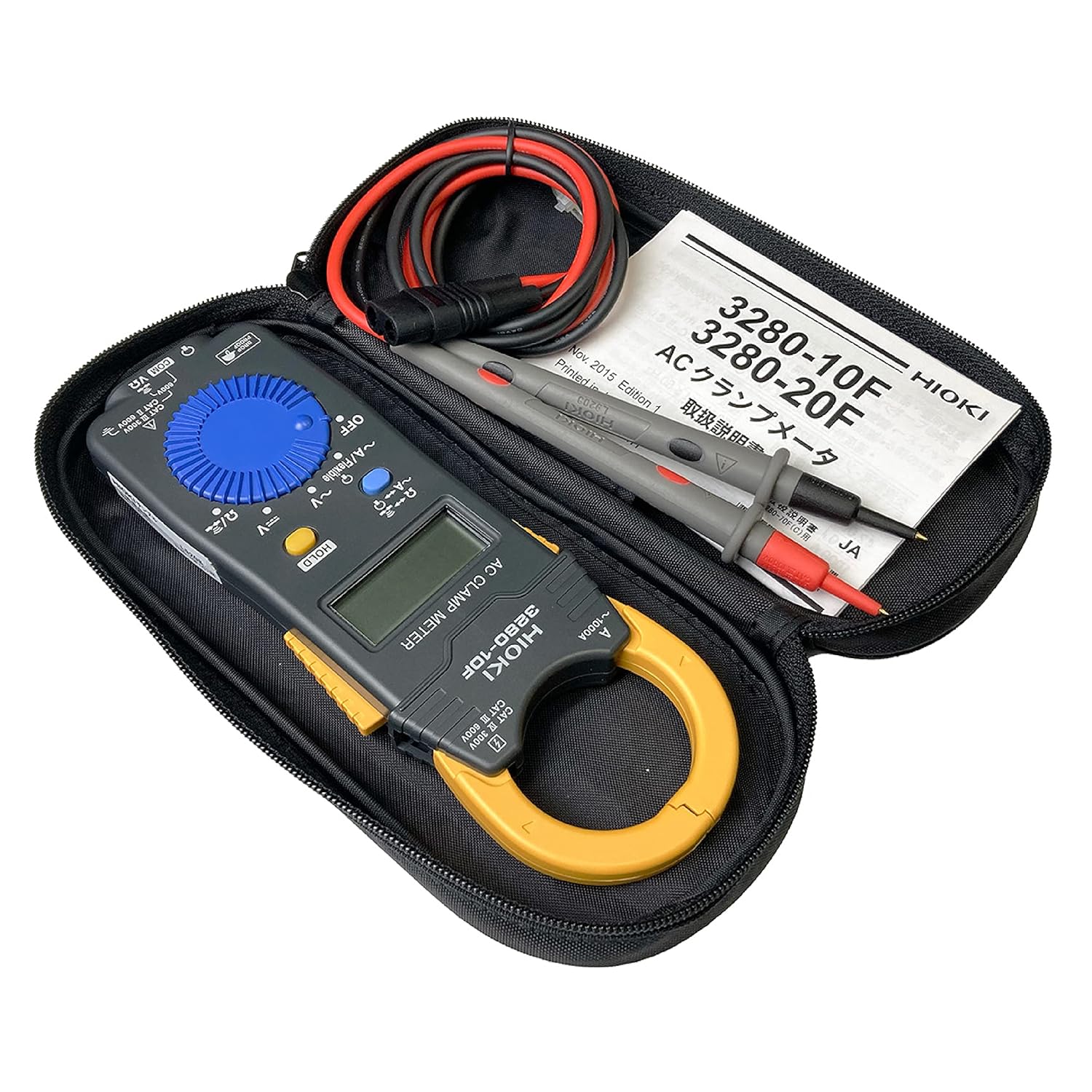

Accessories:
L9208 Test Lead, 9398 Carrying Case, Coin Lithium Battery (CR2032), Instruction Manual
[Options]
– CT6280 AC Flexible Current Sensor (Attachment, C0205 Carrying Case Included)
– 9209 Test Lead Holder
– L4933 Contact Pin (can be connected to the end of the L9208 in the accessory Please remove the cap before installing)
– L4934 small alligator clip (can be connected to the end of the L9208 in the accessories. Please remove the cap before installing)
Country of Origin:
Japan
