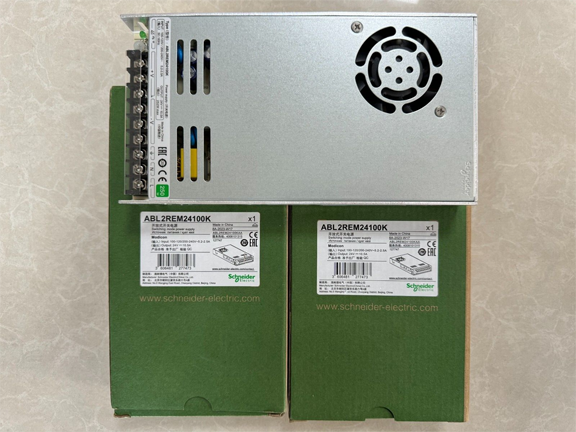

DC 24V 10.5A Power Supply

12 People watching this product now!

Ultra thin design, small size, reduces installation space and provides more space for other electrical equipment.

Stable 24 VDC output, effectively reduce downtime.

Proven performance with a MTBF over 600K hours.

Protected maintenance with designed hole in casing to help prevent risk of short circuit with long screws.

Easy maintenance with auto-recovery mode.

Specifications

Main
Range of product	Easy Modicon ABL2
Product or component type	Power supply
Power supply type	Regulated switch mode
Rated power in W	252 W
Main Input Voltage	100…120 V AC single phase 200…240 V
Output voltage	24 V DC
Power supply output current	10.5 A
Operating position	Any position
Vibration resistance	4 gn (f= 10…500 Hz) conforming to IEC 61131-2
Name of test	Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A

Complementary
Input voltage limits	90…132 V 180…264 V
Network frequency	47…63 Hz
Inrush current	60 A at 100…120 V AC 60 A at 200…240 V AC
Cos phi	0.5
Efficiency	87 %
Power dissipation in W	37.6 W
Current consumption	2.5 A at 240 V
Input protection type	Integrated fuse (not interchangeable)
Output voltage limits	20.4…27.6 V
Line and load regulation	+/- 1 %
Holding time	>= 12 ms at 115 V
Output protection type	Against overload, protection technology: 1.1…1.5 x In Against short-circuits, protection technology: 1.1…1.5 x In Against overvoltage, protection technology: 28.8…33.6 V Thermal
Connections – terminals	For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
Marking	CE
Electromagnetic compatibility	Immunity to electromagnetic interference conforming to EN 55022 class B
Mounting support	DIN rail with accessory DIN rail with accessory
Operating altitude	5000 m
Output coupling	Series
Overvoltage category	II
Meantime between failure [MTBF]	600000 h at 25 °C
Status LED	1 LED (green) output voltage
Width	215 mm
Height	115 mm
Depth	30 mm
Product weight	0.75 kg

Environment
Product certifications	EAC IC RoHS KC RCM
IP degree of protection	IP20 conforming to IEC 62368-1
Ambient air temperature for operation	-30…70 °C (with power derating of 2.5 % per °C)
Ambient air temperature for storage	-40…85 °C
Relative humidity	10…95 %
Overvoltage category	Class I conforming to IEC 62368-1
Pollution degree	2
Dielectric strength	2000 V between input and ground
